5MTS6000

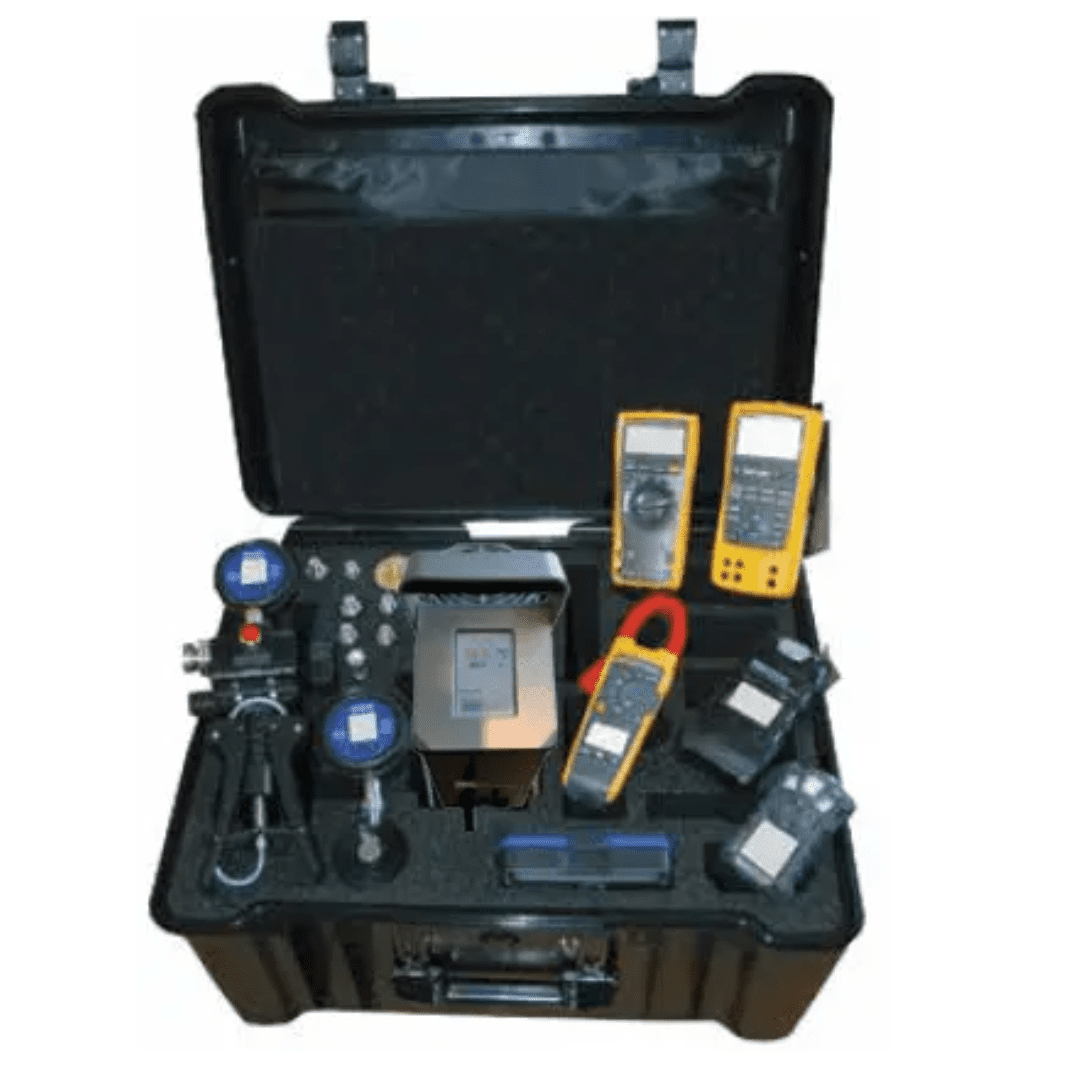

IKM 5MTS6000 – AHTS / PSV / CSV Maritime Calibration Kit – Complete in Case

Key Features & Benefits

• Comprehensive Marine Calibration Kit: Includes temperature, pressure, and electrical calibration tools,
  all packed in a rugged case with foam inserts and required accessories

• SOLAS‑compliant E0‑class calibration readiness: Ideal for maintaining critical instrumentation on board,
  with instruments traceable to recognized standards

• Fully certified and traceable: Every component is supplied with factory calibration certificates, ensuring
  compliance with class requirements

• Global delivery with guaranteed instrument availability: IKM’s worldwide network ensures calibrated
  equipment reaches your vessel wherever it operates

Kit Contents

The 5MTS6000 kit includes:

• TC65M Temperature Calibrator (Range: +30…650 °C)

• PM205 Precision Pressure Calibrators (60 bar & 700 bar versions)

• Fluke 725 Process Calibrator (mA, volts, temperature, frequency, loops, etc.)

• Fluke 177 Digital Multimeter (True RMS)

• Fluke 376 AC/DC Current Clamp with iFlex (0–1000 A, True RMS)

• Hioki MIT230 / 4056‑20 Insulation Tester (up to 1000 V)

• Custom foam‑lined Peli® calibration case (5MTS68HP60H) covering –0.95 to 700 bar

• Adapter kit and 40 mm test flange for pump interface

• Optional MSA gas safety accessories: ALTair 4XR gas detector (LEL/O₂/H₂S), sampling hose, float probe

Why Choose the 5MTS6000 Calibration Kit?

• Complete solution ready for use: No missing components—everything you need is onboard in one case.

• Precision and flexibility for either rapid snapshot checks or comprehensive instrument calibration.

• Long-term reliability: Instruments are stable, rugged, and designed for challenging maritime conditions.

• Simplified maintenance: With standard 3‑year recalibration intervals, downtime is minimized

Ideal Applications

• Regular pressure, temperature, and electrical signal calibration on PSV, AHTS, and CSV vessels

• Verification of critical instrumentation in line with SOLAS and class society requirements

• Suitable for offshore, shipping, and service vessel maintenance programs
